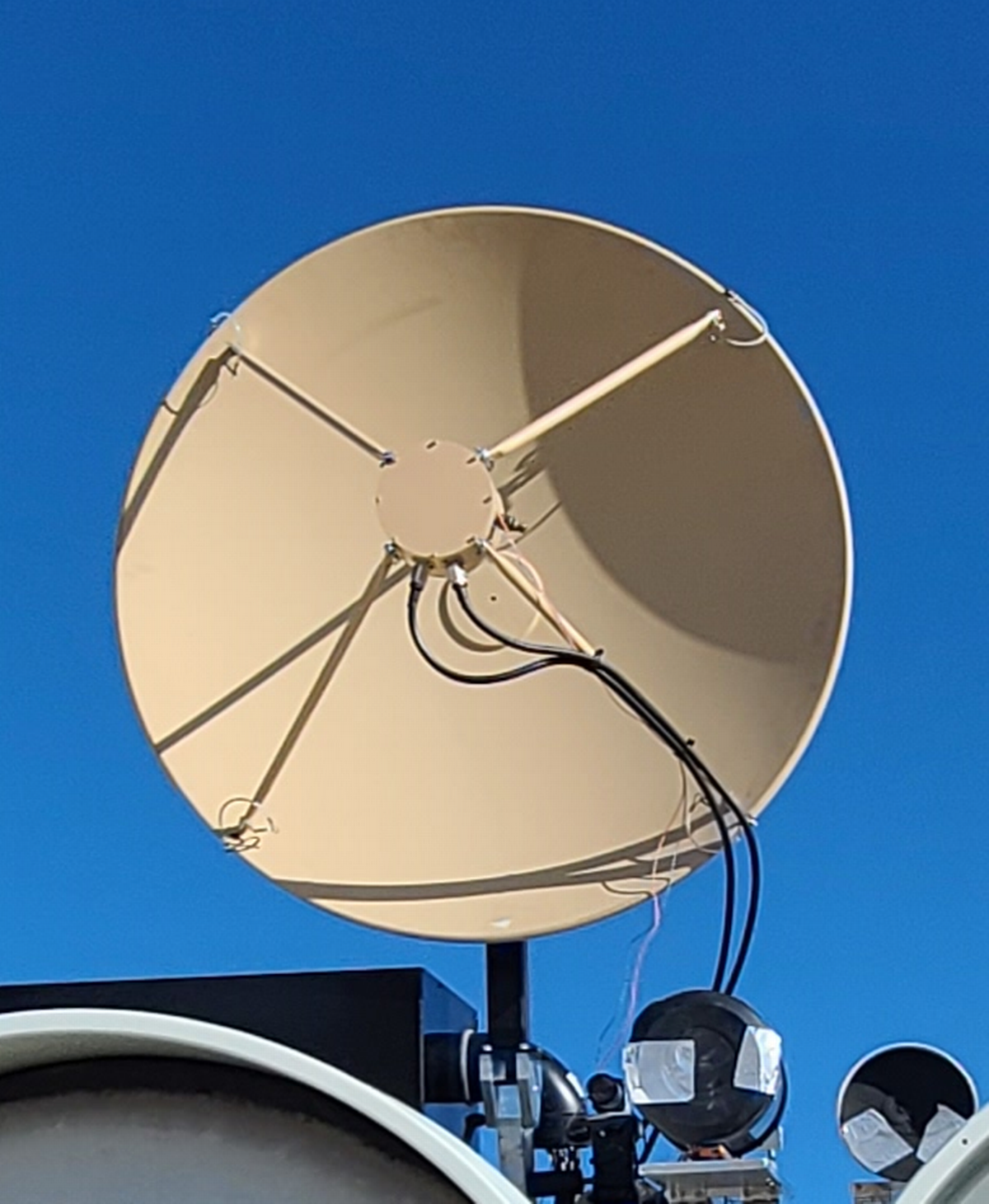

SA HGA-38 SERIES: High gain, Directional, Telemetry antenna for use on fixed ground and trailer vehicle installations supporting standard Telemetry, Tracking, and Command (TT&C) applications in the L, S, and C frequency bands. Variety of frequency bands, polarization, amplifier, and filtering options.
|
PERFORMANCE CHARACTERISTICS |
|||
|
RF and ELECTRICAL |
S-BAND (SA HGA-38S) |
L/S-BAND (SA HGA-38LS) |
C-BAND (SA HGA-38C) |
|
Frequency Range |
2200 – 2400 MHz |
1535 – 2400 MHz |
4400 – 5850 MHz |
|
Antenna Gain |
25.0 dBi @ 2300 MHz |
21.5 dBi @ 1545 MHz 25.0 dBi @ 2300 MHz |
31.5 dBi @ 2300 MHz |
|
Beamwidth (3-dB) |
14.0° |
9.5° |
4.5° |
|
Polarization |
RHCP & LHCP |
RHCP & LHCP |
RHCP & LHCP |
|
VSWR |
2.5:1 all ports |
||
|
LNA Gain (Optional) |
30 – 60 dB |
||
|
LNA Noise Figure (Optional) |
0.5 – 0.8 dB |
0.5 – 0.9 dB |
0.6 – 1.0 dB |
|
MECHANICAL |
|||
|
Dimensions |
38” Diam. |
||
|
Weight |
<25 lbs. |
||
|
Mounting |
X4 ¼-20 UNC 6.36” square pattern |
||
|
Interface |
N-Type Female |
||
|
ENVIRONMENTAL |
|||
|
Operating Temperature |
-40° to 50° |
||
|
Humidity |
100% condensing |
||
|
Wind Survival |
50 mph |
||
| Model | Connector | Frequency | Gain | Size | VSWR | Polarization |
|---|---|---|---|---|---|---|
| HGA38 | N-Type | 1535 - 5850 MHz | 25 - 31.5 dBi | 38 in | 2.5:1 | RHCP & LHCP |
Price: Call for pricing
