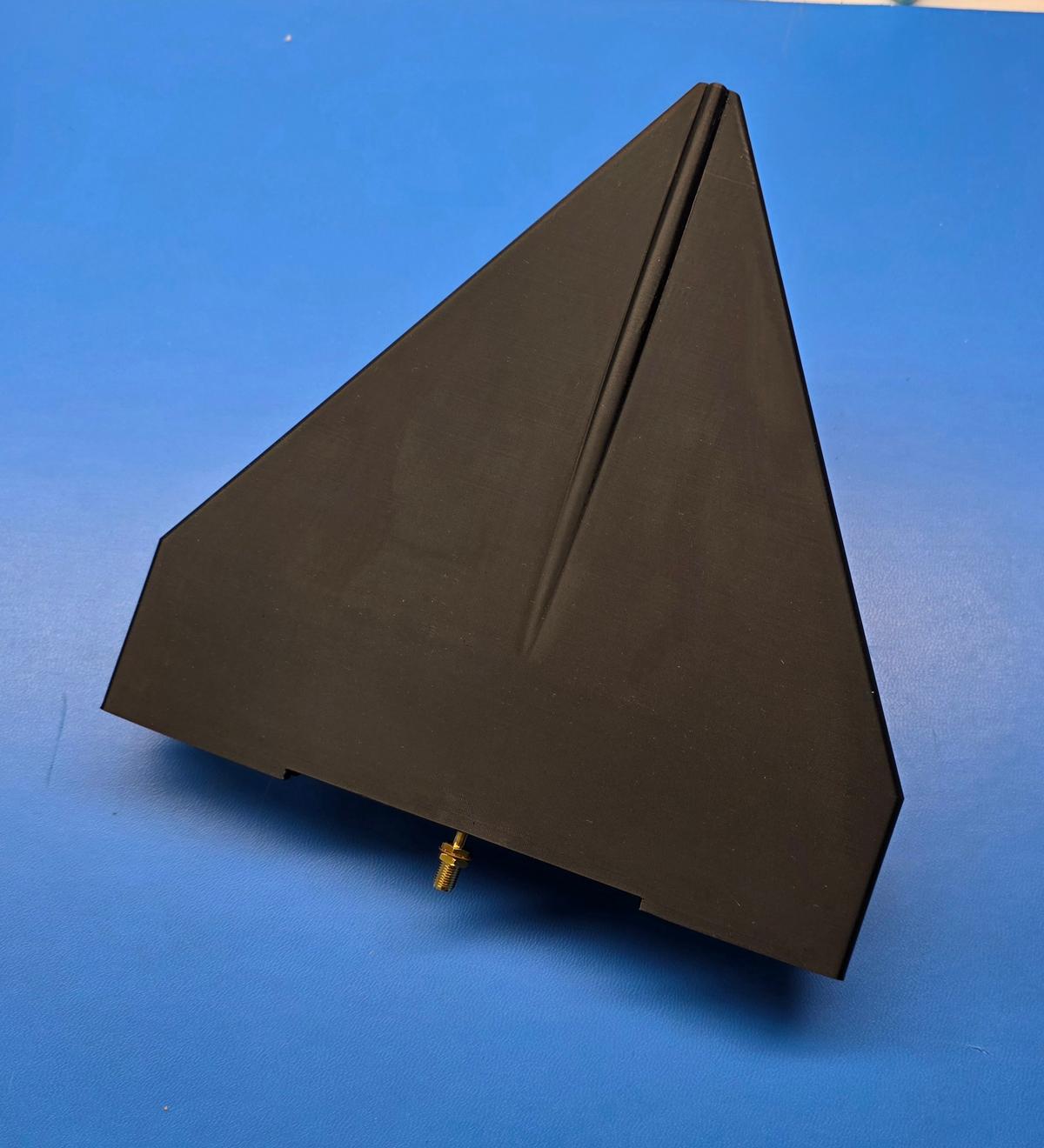

The LPCB-500606-01 is a compact, low-cost, PCB-based log-periodic dipole array (LPDA) designed for broadband directional RF coverage across 500 to 6000 MHz. Engineered for applications requiring predictable gain, stable radiation patterns, and wideband impedance performance, this antenna is well suited for spectrum monitoring, RF surveillance, test and measurement, and general-purpose broadband communications.
The printed-circuit LPDA architecture provides frequency-independent electrical behavior, delivering consistent gain and beam characteristics across the operating band while maintaining a low profile, lightweight form factor. PCB construction enables high repeatability, reduced manufacturing cost, and easy system integration, making the LPCB-500606-01 an excellent choice for both fixed installations and portable RF systems.
Designed and manufactured by Signal Antenna Systems, the LPCB-500606-01 balances performance, durability, and affordability, offering a reliable broadband directional antenna solution for commercial, industrial, and research applications.
Broadband coverage from 500–6000 MHz
Directional log-periodic performance with stable gain
PCB-based construction for low cost and high repeatability
Lightweight, compact form factor
Ideal for monitoring, testing, and wideband RF systems
| Model | Connector | Frequency | Gain | Size | VSWR | Polarization |
|---|---|---|---|---|---|---|
| LPCB-500606-01 | SMA Female | 500 - 6000 MHz | +6.5 dBi | 8.5"x8.6"x1.3" | 2.0:1 | Linear (V or H) |
Price: Call for pricing
