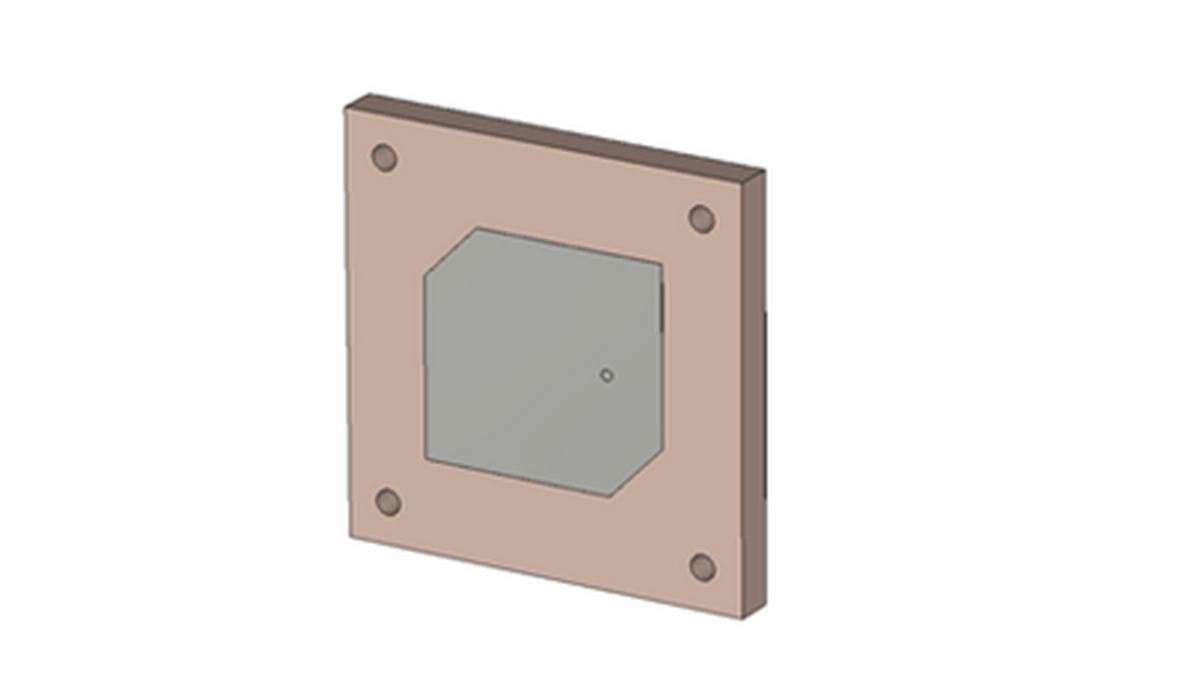

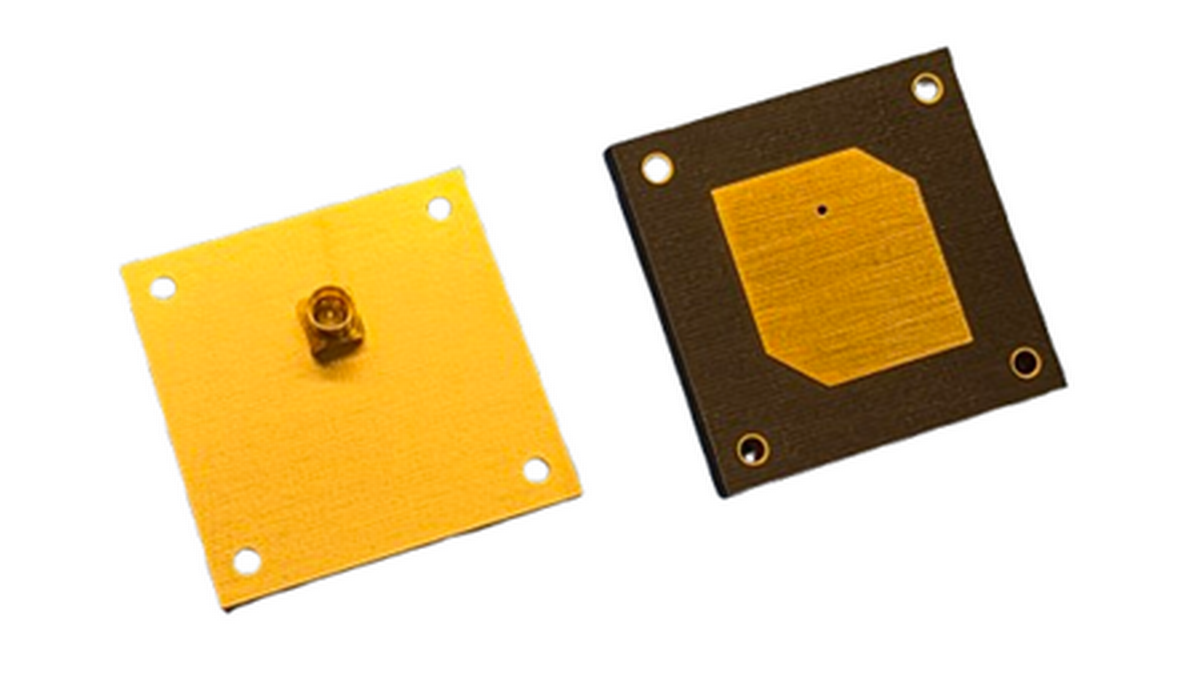

The CPAE Series C-Band Patch Antennas are compact, circularly polarized antennas engineered for reliable Telemetry, Tracking & Command (TT&C) and satellite communication applications. Designed as part of the Signal Antenna Systems Economy Series, the CPAE platform delivers +7 dBi nominal gain, stable radiation characteristics, high efficiency, and low VSWR performance across the specified C-band operating range.
Utilizing a precision-designed microstrip patch architecture, the CPAE series provides robust RHCP or LHCP polarization, consistent axial ratio, and predictable beam performance in a lightweight, low-profile configuration. The compact form factor and cost-optimized construction make these antennas well suited for CubeSat, nanosatellite, UAV, and space-constrained aerospace and defense platforms requiring dependable circular polarization in a mechanically simple package.
Manufactured with repeatable PCB processes and controlled RF design methodology, the CPAE series offers an effective balance of performance, integration simplicity, and economic value for mission-critical C-band systems.
| Model | Connector | Frequency | Gain | Size | VSWR | Polarization |
|---|---|---|---|---|---|---|
| CPAE-5X0X07-XX | SMP Jack | 4900 – 5400 MHz | 7 dBi | 1.25”x1.25”x0.13” | 1.5:1 | RHCP or LHCP |
Price: Call for pricing
