32 Channel Switch Module (0.01 – 6.5 GHz)
Model: SW32-010600-SP-1000

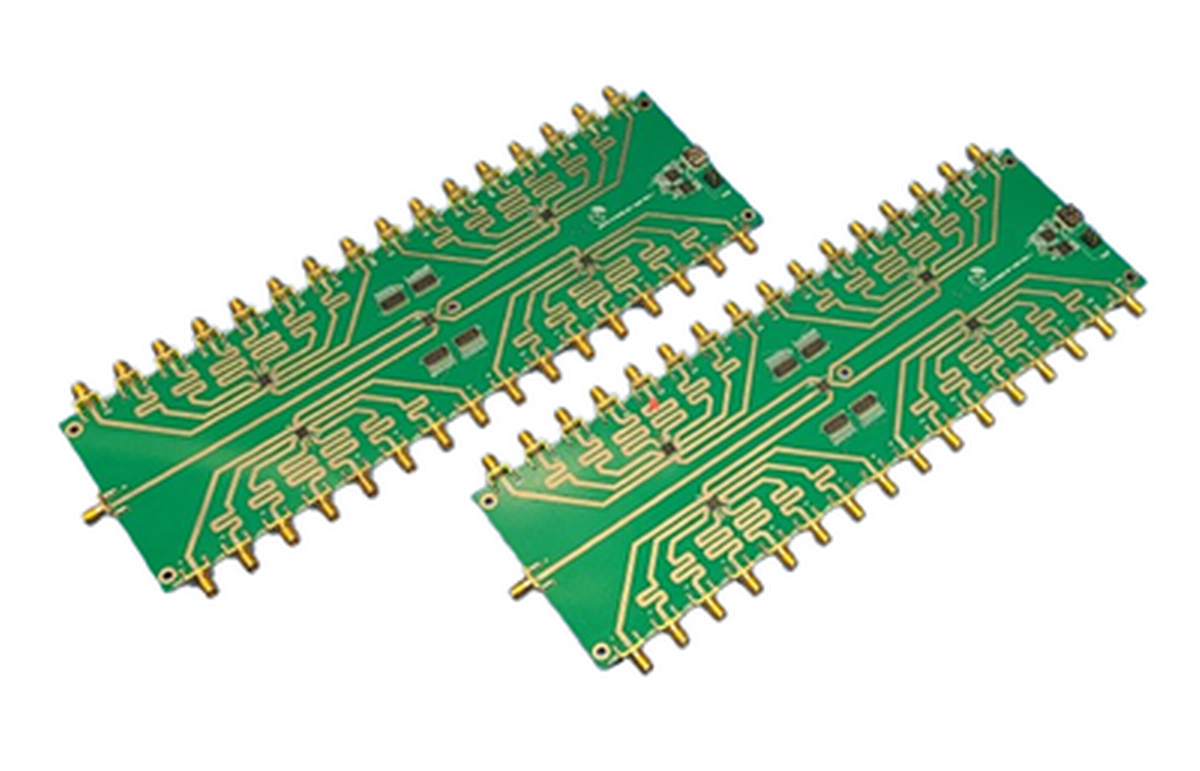

The SW32-010600-SP-1000 is a high-performance, solid-state Single Pole 32-Throw (SP32T) RF switch module designed to route one RF input to any of 32 output channels with fast, reliable switching. Covering a wide frequency range of 10 MHz to 6.5 GHz, this module is optimized for automated test systems, telecom infrastructure, RF signal monitoring, and distribution applications where repeatability and channel-to-channel consistency are critical
The module delivers <20 ms switching time, ensuring efficient signal routing in high-throughput environments. Typical insertion loss is <2.5 dB at 1 GHz and approximately 10 dB at 6 GHz, with 40 dB typical channel isolation, supporting accurate signal integrity across all ports
Designed for system integration, the unit is powered and controlled through a single USB Type-C interface utilizing the FTDI FT260 HID-to-I2C/UART bridge, eliminating the need for specialized drivers. Communication is handled via 64-byte HID messages to the onboard MCU. A Windows-based GUI is provided for immediate operation, with example control code available for custom software integration. The FT260 operates as a buffered UART interface and does not expose a standard COM port to the host system
Channel-to-channel amplitude variation is tightly controlled at 0.25 dB max, with <3° phase variation, enabling consistent measurement results across all 32 paths. The module supports +30 dBm CW power handling, making it suitable for both low-level measurement and moderate power routing applications
The compact board measures 10.5" x 3.3" x 0.5" and weighs approximately 6 oz, with SMA female RF connectors and operation from –20°C to +55°C, ensuring flexibility for bench-top or embedded system deployment
Key Features:
Single Pole 32-Throw (SP32T) solid-state architecture
10 MHz – 6.5 GHz operating range
<20 ms switching speed
40 dB typical channel isolation
+30 dBm CW power handling
USB Type-C power and control interface
Driverless HID communication via FT260
Compact, lightweight form factor
The SW32-010600-SP-1000 provides a scalable, software-friendly RF switching solution ideal for multi-channel test automation, antenna characterization setups, VNA switching matrices, and RF distribution networks requiring fast and repeatable signal routing.
| Model | Connector | Frequency | Gain | Size | VSWR | Polarization |
|---|---|---|---|---|---|---|
| SW32-010600-SP-1000 | SMA Female | 0.01 - 6.50 GHz | N/A | 10.5 | 2.0:1 | N/A |
Price: Call for pricing
