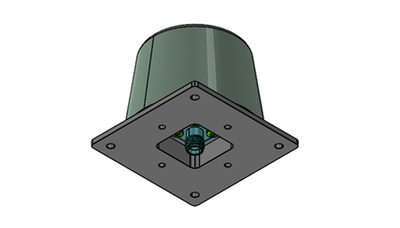

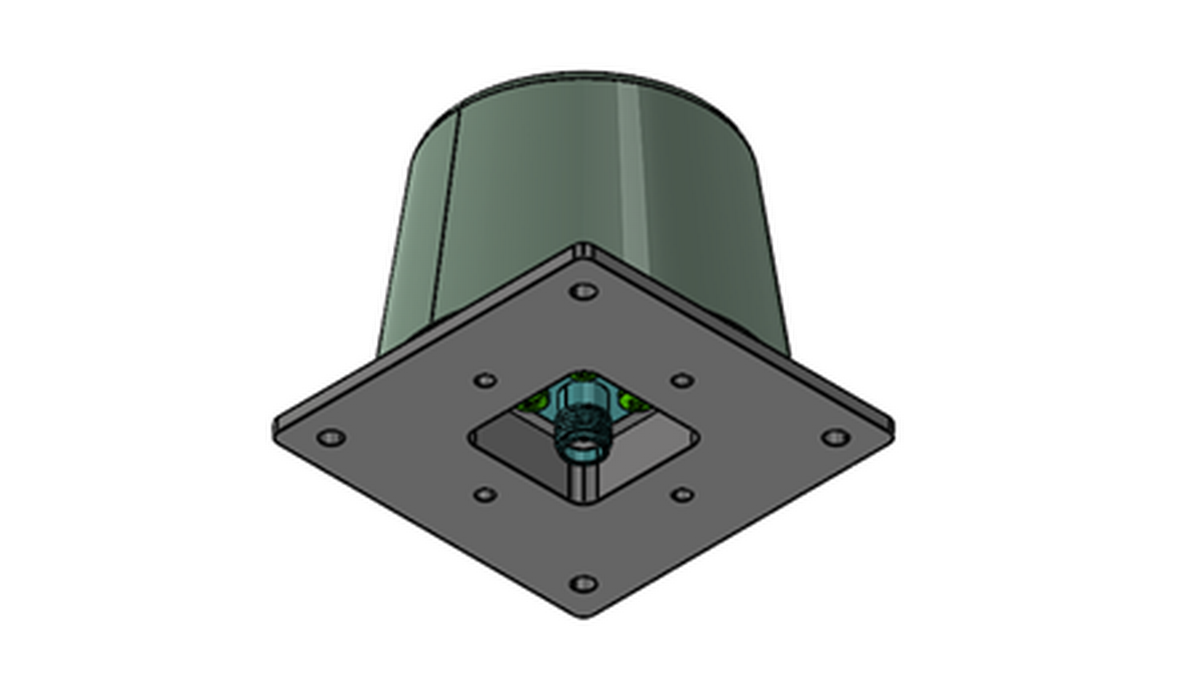

The UWB0120-1000 is a compact, ultra-wideband omni-directional antenna engineered to provide continuous coverage across the 1 to 20 GHz frequency range. Its optimized elevation-plane radiation pattern delivers consistent gain and excellent hemispherical coverage, making it well suited for broadband communications, electronic warfare, spectrum monitoring, and RF test applications.

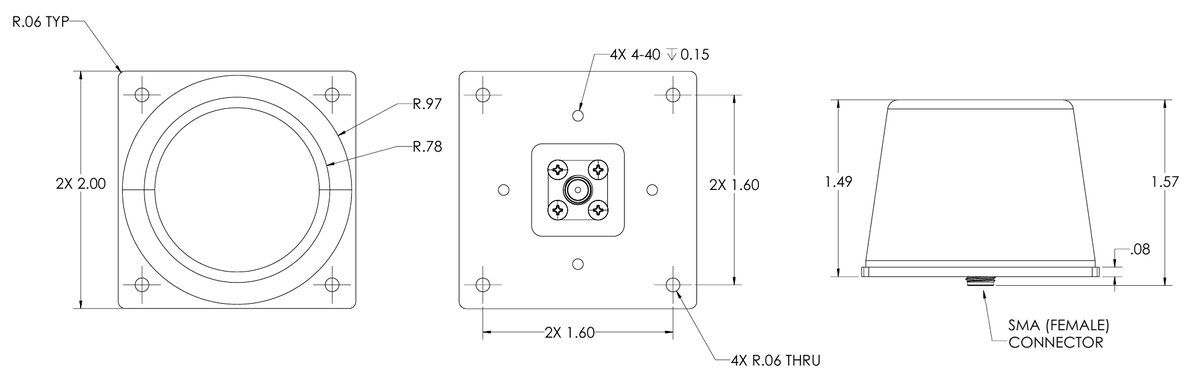

Designed for both laboratory and field deployment, the UWB0120-1000 combines rugged mechanical construction with stable electrical performance over nearly five octaves of bandwidth. The compact 2-inch cubic form factor allows easy integration into fixed installations, mobile platforms, and custom RF systems where size, weight, and broadband performance are critical.
The antenna provides 360° azimuth coverage, linear polarization, and a nominal 50° elevation beamwidth, delivering reliable omnidirectional performance for applications requiring continuous situational awareness and broadband signal acquisition. Typical gain ranges from -4 to 0 dBi over 1–2 GHz and 0 to +4 dBi from 2–20 GHz, with excellent impedance matching across the operating band.
Ideal applications include:
| Model | Connector | Frequency | Gain | Size | VSWR | Polarization |
|---|---|---|---|---|---|---|
| UWB0120-1000 | SMA | 1 - 20GHz | -4 to +4 dBi | 2 | 2.0:1 | Vertical |
Price: Call for pricing
