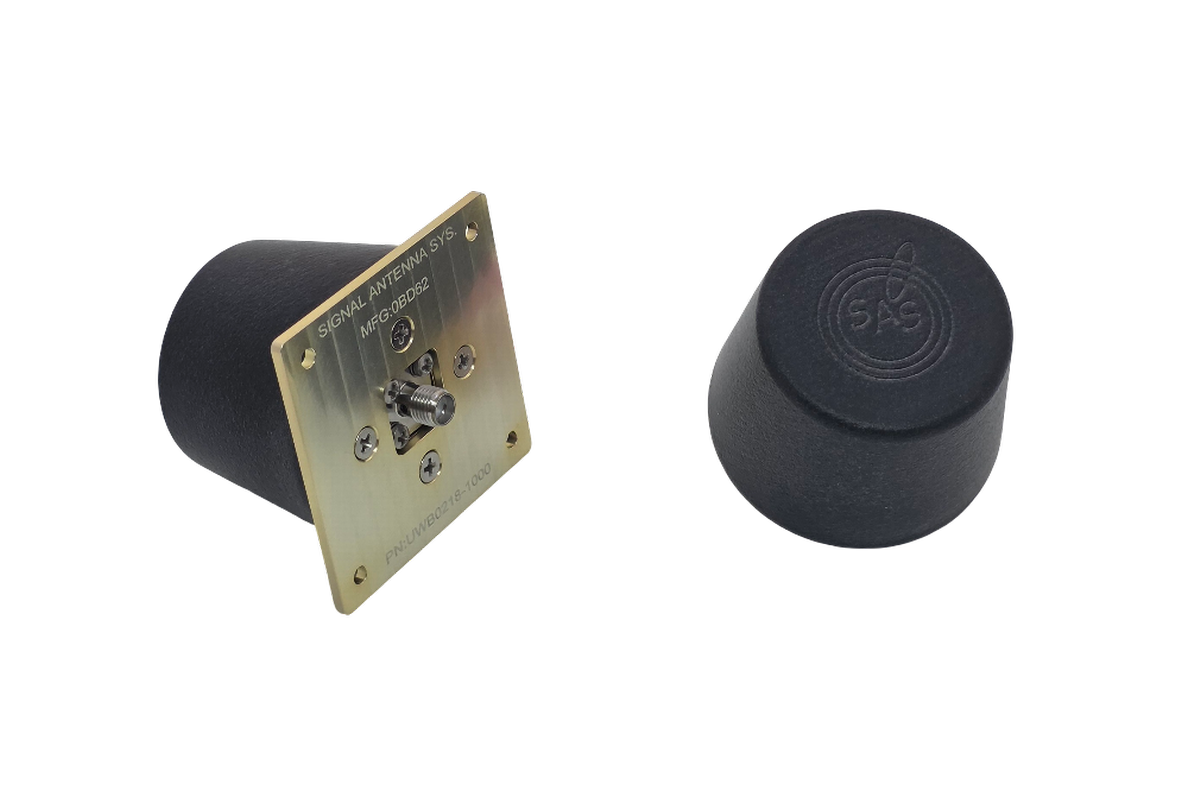

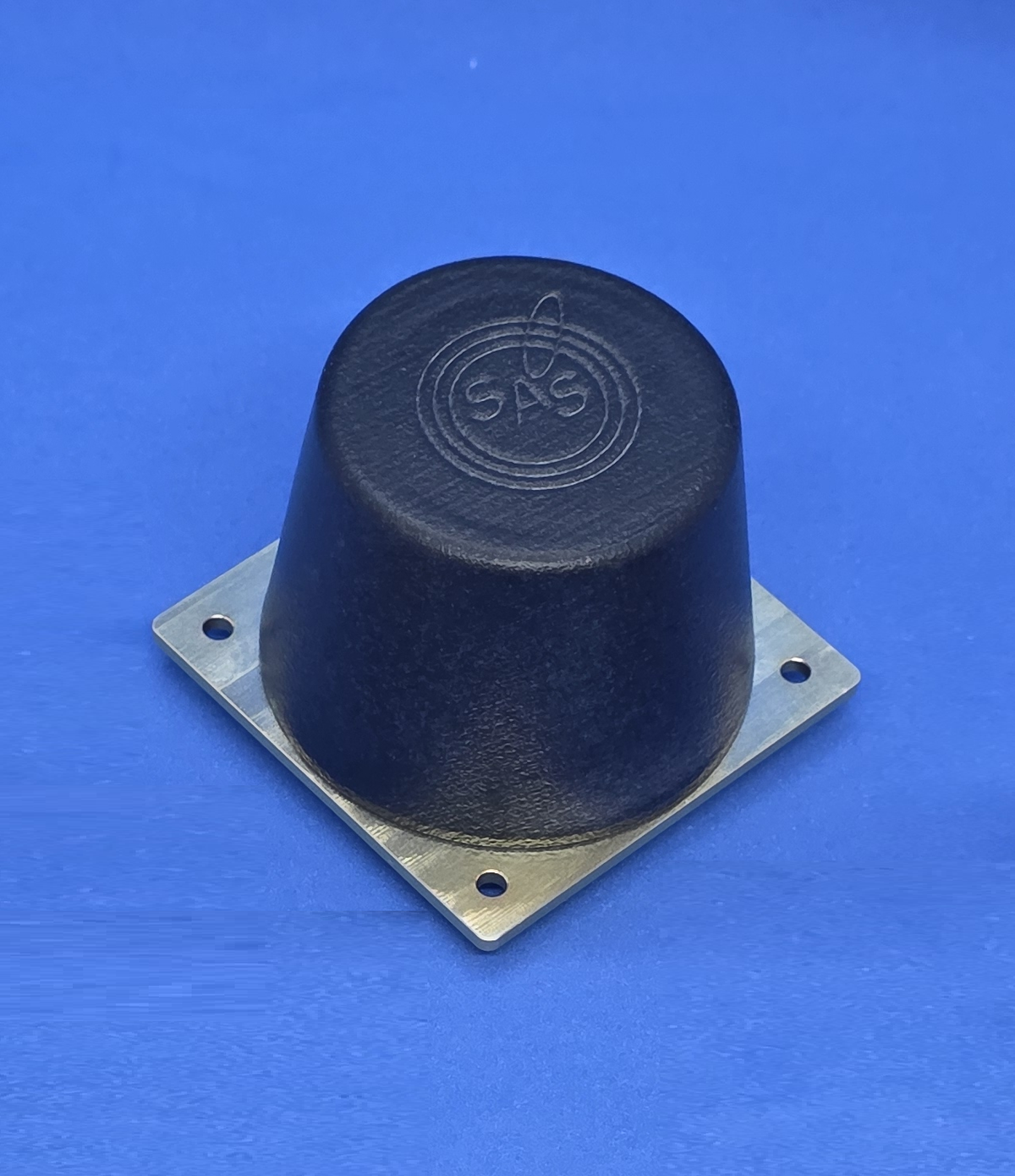

UWB0218-1000: Wideband omni-directional antenna with wide elevation plane beamwidth allowing for reliable coverage. Operational frequency range from 2 - 18 GHz supports a variety of applications and requirements such as: Communication, Signal Intelligence (SIGINT), and Spectrum Monitoring.
Key Features & Benefits
Exceptional Bandwidth: Operates from 2 to 18 GHz, providing expansive frequency coverage for multi-band platforms and agile systems.
Omnidirectional Performance: 360° horizontal (H-plane) coverage combined with a wide elevation (E-plane) beamwidth ensures dependable signal reception/transmission across platform orientations and environments.
Compact & Rugged Design: Built to perform in both indoor and outdoor settings while maintaining stable RF integrity — ideal for airborne, ground-mobile or stationary deployments.
Optimised Gain & VSWR: Offers approximately +2 dBi gain and a VSWR of up to 2.0:1, ensuring efficient power usage and reduced signal reflections. signalantenna.com
Made in the USA: Designed and manufactured in the USA (CAGE: 0BD62), backed by SAS’s commitment to quality and rapid delivery. signalantenna.com
Typical Applications
Tactical communications and datalinks
Signal intelligence (SIGINT) and electronic warfare (EW) systems
Spectrum monitoring and analysis
Platform installations on UAVs, ground vehicles, ship-boards, command & control vehicles
Mechanical & Integration Notes
The UWB0218-1000 is designed for compact form-factor integration with ease of mounting and minimal footprint. Refer to the mounting outline drawing (UWB0218-Outline-Mounting-Drawing-Rev-A.pdf) for detailed dimensions and mounting provisions.
| Model | Connector | Frequency | Gain | Size | VSWR | Polarization |
|---|---|---|---|---|---|---|
| UWB0218-1000 | SMA | 2 - 18 GHz | +2dBi | 2 | 2.0:1 | Vertical |
Price: Call for pricing
