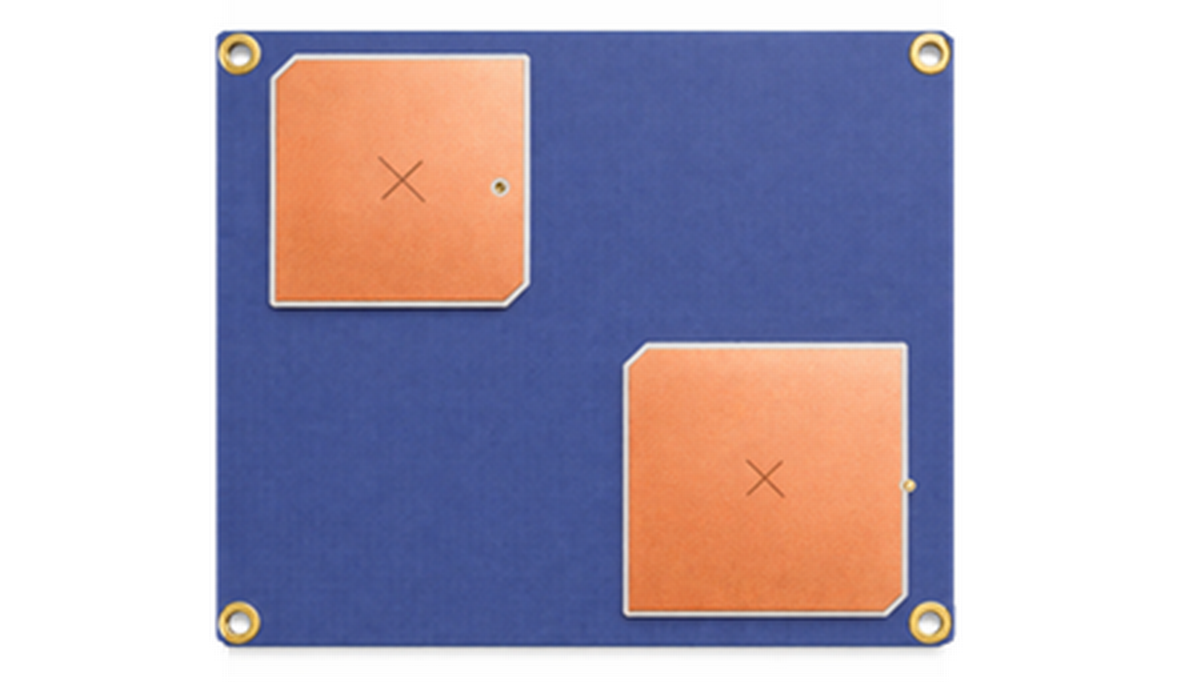

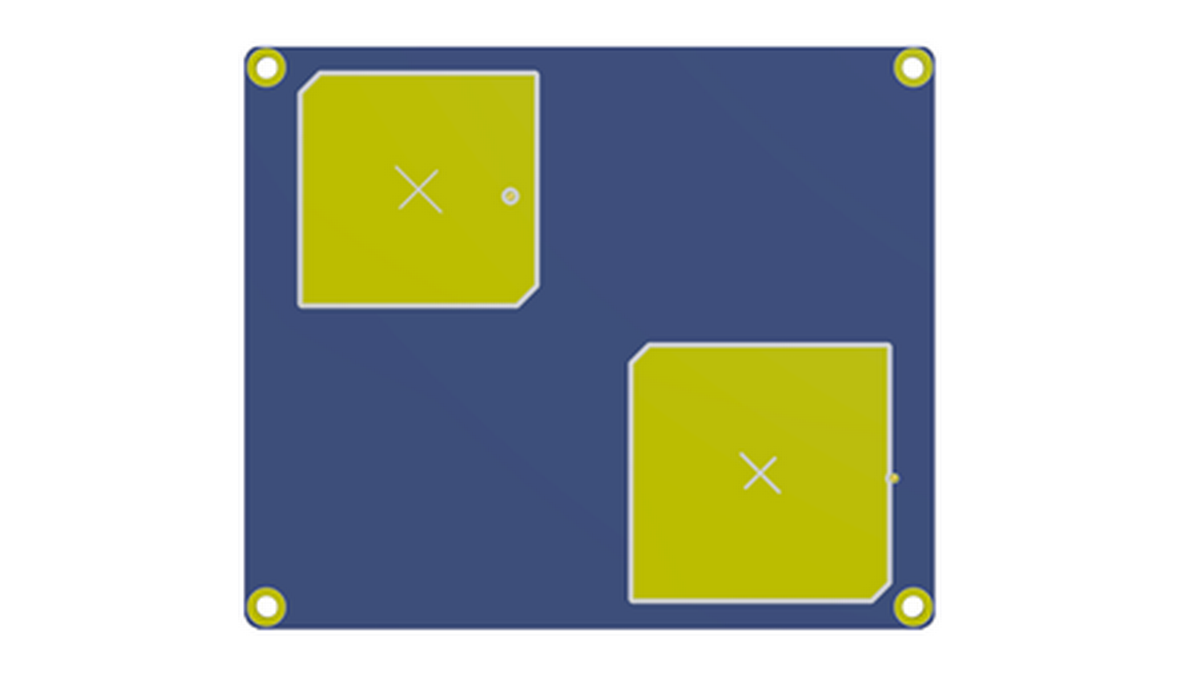

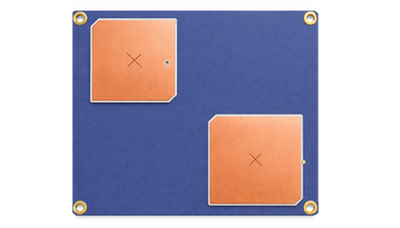

SPA5-2000DB-RH: S-Band antennas designed and optimized for Telemetry, Tracking & Command (TT&C) and small satellite communications, these antennas provide robust right-hand circular polarization (RHCP), low VSWR, and stable gain in a compact, lightweight package ideal for CubeSat, nanosatellite, UAV, and other platforms.
Available in stand-alone receive (Rx: 2020–2110 MHz), transmit (Tx: 2200–2320 MHz), as well as dual-band Rx-Tx versions.
| Model | Connector | Frequency | Gain | Size | VSWR | Polarization |
|---|---|---|---|---|---|---|
| SPA5-2000DB-RH | SMP Jack | Rx: 2020–2110 MHz Tx: 2200–2320 MHz | 5 dBi | 3.86”x3.25”x0.13” | 2:0:1 | RHCP |
Price: Call for pricing
